Product Parameters
| Warranty(Year):10-Year | Lighting solutions service:auto CAD layout |
| Luminous Efficacy(Im/w):150 | Product Weight (kg) :197 |
| Place of Origin:Jiangsu, China | Brand Name:PANAILO |
| Material:Steel, Hot roll galvanizing | Type:Polygonal, Round or octangon |
| Application:Square,Highway;airport;road | Name:Double-arm hot-dip galvanized 12m solar street light |
| Surface treatment:Hot dip galvanized | Height:12M |
| Thickness: 4 mm (negative tolerance) | Powder coated:White;blue;silver;grey |
| Wind speed:160 Km/h | Quality Control:ISO9001:2000 |
| Height | 12 m |
| Suit for | Airport , seaport, plaza, stadium , square, highway, street way etc |
| Shape | Conoid , Multi-pyramidal, Columniform, polygonal or conical |
| Material | Usually Q345B/A572, Q235B/A36, As well as Hot rolled coil from Q460 , ASTM573 GR65, GR50 , SS400, SS490, to ST52- |
| Lamp power | 80W-240W LED |
| 220V (+-10%) /50Hz | |
| Torlance of the dimenstion | +- 2% |
| Electroshock resistant protective grade | Grade one |
| The casing anti-corrosion performance | Class two |
| Working atmosphere of lighting fixture | -35 °C~+45 °C |
| Surface treatment | Hot dip galvanized Following ASTM A 123, color polyester power or any other standard by client required. |
| Joint of Poles | Insert mode, innerflange mode, face to face joint mode |
| Design of pole | Against earthquake of 8 grade |
| Wind Speed | 160 Km/Hour |
| Minimum yield strength | 235 mpa |
| Minimum ultimate tensile strength | 490 mpa |
| Max ultimate tensile strength | 620 mpa |
| Standard | ISO 9001 |
| Length of per section | Within 12m once forming without slip joint |
| Welding | We has past flaw testing. Internal and external double welding makes the welding beautiful in shape |
| Welding Standard :AWS ( American Welding Society ) D 1.1 | |
| Thickness | 1 mm to 30 mm |
| Production Process | Rew material test → Cuttingj →Molding or bending →Welidng (longitudinal )→Dimension verify →Flange welding →Hole drilling →Calibration → Deburr→Galvanization or powder coating ,painting →Recalibration →Thread →Packages |
| Packages | Our poles as normal cover by Mat or straw bale at the top and bottom , anyway also can following by client required , each 40HC or OT can loading how many pcs will calculation base on the client actually specification and data. |
| Style | Size and styles are veriable as per customer request |
Engineered for superior luminance and structural excellence, our 12m Double Arm Street Lamp Pole (PST-Street Light Pole-12m Double Arm) redefines outdoor illumination infrastructure.
- Key Engineering Attributes
Industrial-Grade Construction: Fabricated from premium steel with triple-layered hot-dip galvanization (minimum 4mm thickness) ensuring corrosion resistance
Extreme Weather Resilience: Wind-load certified for 160 km/h operational stability
Optimized Configuration: Dual-arm architecture enables versatile fixture positioning for maximum coverage
- Technical Specifications
Structural Dimensions: 12-meter vertical profile with 240° arm adjustment capability
Material Science: SAE 1008/1010 steel with 550μm zinc coating (ISO 1461 standard)
Operational Tolerance: -40°C to +80°C temperature range
- Application Versatility
Precision-engineered for demanding environments including:
Transportation networks (highways, airport runways)
Public venues (stadiums, municipal plazas)
Commercial hubs (seaport terminals, urban squares)
The 12m Double Arm Street Lamp Pole delivers strategic luminance enhancement with configurable mounting options for specialized lighting scenarios. Custom fabrication available per project requirements.
About Us
PRODUCT OVERVIEWS
| High quality mains light pole |
|
||
| Category | Description | ||
| Double-arm | 1 | Material:Q235B,main rod thickness 4mm, upper mouth 76mm, lower mouth 215mm | |
| 2 | Hot dip galvanizing, brush asphalt 0.5 m above flange and bottom | ||
| 3 | Packing: conventional packing (Use old blanket to pack poles at both ends) | ||
| 4 | After galvanized, theoretical weight of pole: 197KG | ||
| 5 | What's included: Rubber sealing ring | ||

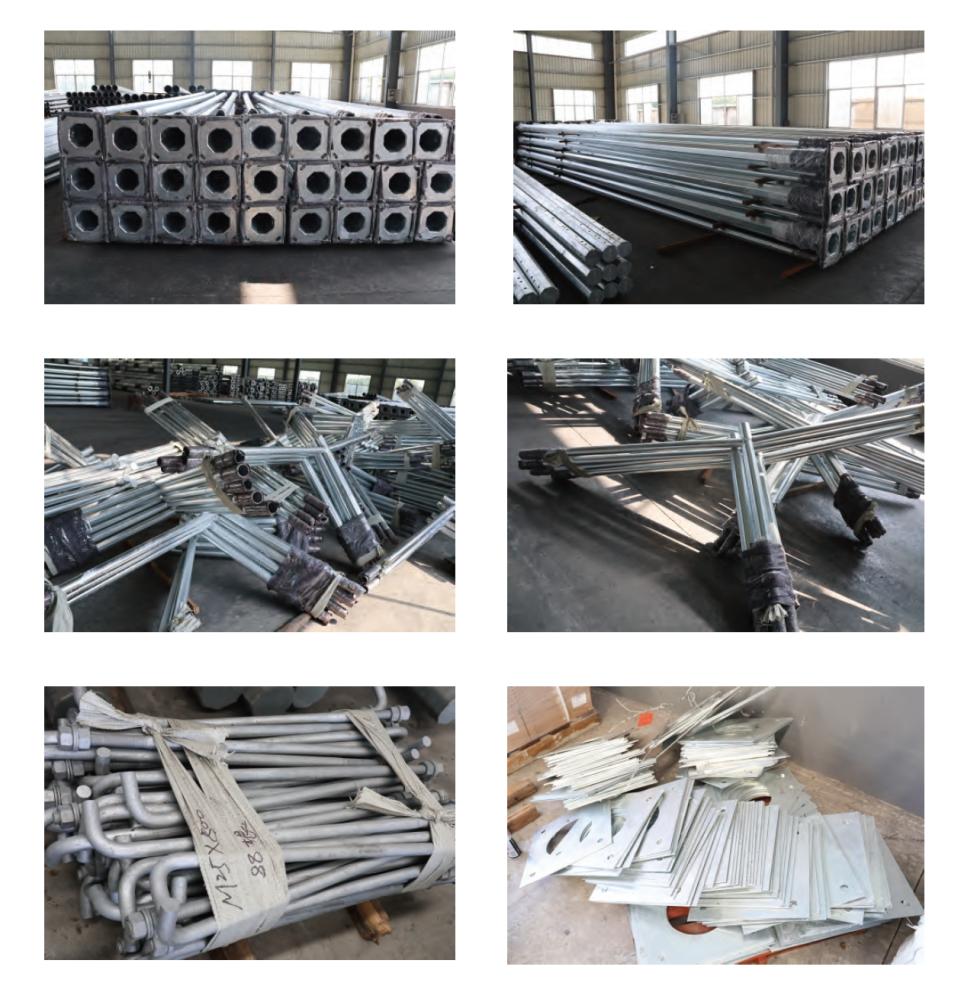

Real scene of the factory
