Product Parameters
| Essential details | |
| Warranty(Year):10-Year | Lighting solutions service:auto CAD layout |
| Luminous Efficacy(Im/w):150 | Material:Q235B |
| Place of Origin:Jiangsu, China | Brand Name:PANAILO |
| Material:Steel, Hot roll galvanizing | Type:Polygonal, Round or octangon |
| Application:Square,Highway;airport;road | Name:Double Arm Pole hot-dip galvanized 9m street light pole |
| Surface treatment:Hot dip galvanized | Height:9M |
| Thickness: 4 mm (negative tolerance) | Powder coated:White;blue;silver;grey |
| Wind speed:160 Km/h | Quality Control:ISO9001:2000 |
Engineered for superior load-bearing capacity, our 9m Double Arm Street Lamp Pole features:
- High-tensile Q235B steel construction with 4mm uniform wall thickness
- Dual-arm configuration optimized for 80W-240W LED fixtures (220V±10%/50Hz)
- ASTM A123-compliant hot-dip galvanization with optional RAL-code powder coatings
Performance Guarantees
Wind resistance certified for 160 km/h sustained gusts
Seismic stability meeting 8-grade earthquake standards
Operational temperature range: -35°C to +45°C
AWS D1.1 certified double-welded joints with full NDT inspection
Customization & Compliance
Multiple profile options: polygonal/conical/octagonal
Three connection systems: insert/flange/face-to-face
ISO 9001 manufacturing with 10-year structural warranty
CAD layout services available for project integration
Production Precision
Each unit undergoes 18-stage quality control:
Raw material spectrometry
CNC cutting (±0.5mm tolerance)
Cold-rolling forming
Longitudinal seam welding
Dimensional verification (±2%)
Anti-corrosion treatment (Class II)
Final electrostatic coating

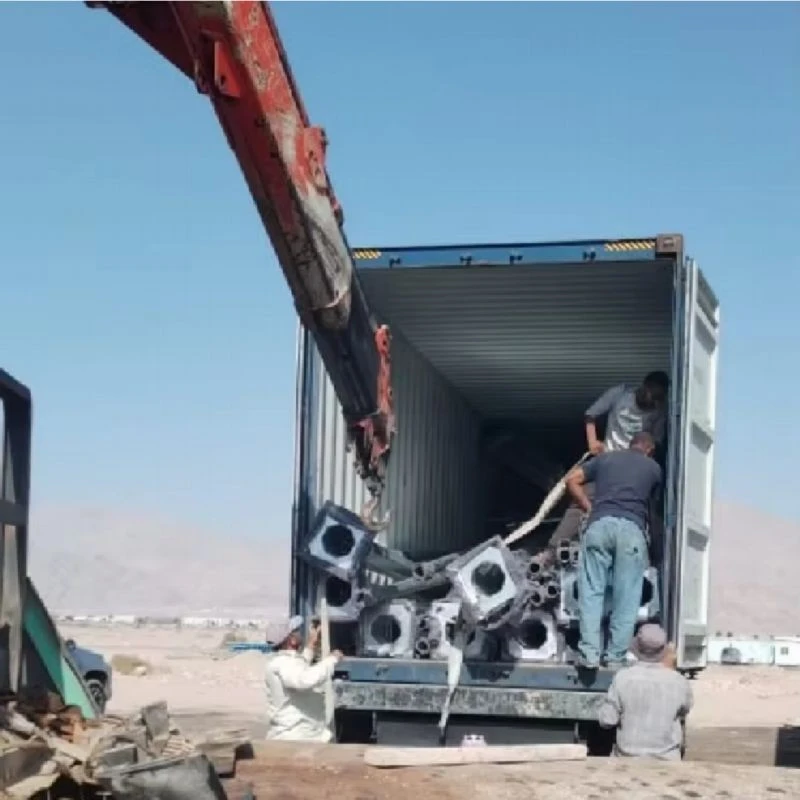

Logistics & Installation
Protective straw/mat packaging at stress points
40HC container optimization services
On-site assembly guidance available
This 9m Double Arm Street Lamp Pole solution combines industrial durability with architectural aesthetics, ideal for critical infrastructure lighting in airports, highways, and urban centers. The balanced arm geometry ensures optimal light distribution while maintaining structural integrity under extreme conditions.
PRODUCT OVERVIEWS
| High quality mains light pole |
|
||
| Category | Description | ||
| Single Arm Pole | 1 | Material: Q235B, main rod thickness 4mm, upper mouth 76mm, lower mouth 130mm,light pole height 9m | |
| 2 | Hot dip galvanizing, brush asphalt 0.5 m above flange and bottom | ||
| 3 | Packing: conventional packing (Use old blanket to pack poles at both ends) | ||
| 4 | All welds are mechanically cleaned to prevent slag | ||
| 5 | Removed burrs or sharp edges | ||
