Your Professional Solar Street Light Supplier



Panailo Smart Technology company limited established in 2020, is a professional company specializing in the research, development, sales and service of solar street lights, also including LED lamps, batteries, lighting poles, and solar power systems and so on.






Why Choose us

Comprehensive Product Qualifications

Our company has established a robust qualification framework. In terms of management systems, we are certified under ISO 9001 for quality management, ISO 14001 for environmental management, and ISO 45001 for occupational health and safety management.

Professional Expertise

Our company is supported by a dedicated research and development team specializing in the innovative application of photovoltaic energy storage and intelligent lighting technologies. This expertise ensures that our products maintain an industry-leading position in terms of light conversion efficiency, battery longevity, and automated control systems.

Global Strength and Reach

Thousands of homes and businesses worldwide are using Panailo's full range of products and cost-effective solutions to power their homes, facilities, streets, and squares.



Parameter



Model

StarDee-A-40W

Default

Street light parameter



Power

40W



Input voltage

12V DC



Controls

Photoelectric sensor, timing, dimming, intelligent power-saving, microwave sensor,winter mode



LED chip brand

LUMILEDS/CREE 3030/5050

LUMILEDS 3030

LED module

1*Module*80pcs



Lens material

Panlite polycarbonate



Operation temperature

-25 ° C to 70 ° C



LED lifespan

>80000 hours



Luminous effciency (± 3%@ 5000K,> 70Ra)

180lm/W



Luminous flux (± 3%@ 50D0K,> 70Ra)

7200lm



CCT

3000K, 4000K, 5000K, 5700K, 6500K

5700K

CRI

70Ra, 80Ra, 90Ra

70Ra

Beam angle

T2/T3M/T4M

T2

Solar photovoltaic module parameter



Solar photovoltaic panel

Mono crystal photovoltaic panel



Solar panel MPPT (5td. Dev. ± 3%)

18V/100W Mono



Battery parameter



Lithium iron phosphate batteries IFR32700, IFR32140

576WH

IFR32140

12.8V/45AH

Charging time

5-6 hours



Battery life

>2500 Cycles ,@80% Dod, 25°C



Working hours

12 hours a day in intelligent mode, 4-5 rainy days



General parameter



Warranty period

3 years



Authentication

CE,RoSH,IEC,IP65,LM79&LM80,TM21



Protection grade

IP65,IK09



Housing material

Heavy duty die cast aluminum (EN AC-46100)



Surface treatment

UV resistant thermosetting polyester/epoxy primer+UV resistant thermosetting polyester+anodizing



Colour

Black, customization request



Installation bracket options

Horizontal and vertical installation, adjustable from 0-90 °



Control system

MPPT and PWM

MPPT

Rain sensing function (optional)

Automatic activation of dual color temperature function in rainy and foggy weather



Suggested installation height

5-6m



Body Dimension

1210*456*390

S




Benefits of Solar Street Light

01/

Cost-Effective: One of the primary advantages of solar street lights is that they are cost-effective in the long run. Although the initial investment for purchasing and installing the lights may be higher, they do not require any additional costs such as wiring, trenching, and utility bills. Additionally, the lights are maintenance-free, which further reduces the overall cost.

02/

Environmentally Friendly: Solar street lights are a clean and renewable energy source, making them environmentally friendly. They do not emit any harmful pollutants, which is beneficial for the environment and human health.

03/

Reliable: Solar street lights are reliable and do not require any external power source. This means that even in areas where there is no access to electricity, these lights can still be installed and used.

04/

Easy to Install: Solar street lights are easy to install and do not require any complicated wiring or trenching. This makes them ideal for areas that are difficult to access and for emergency lighting situations.

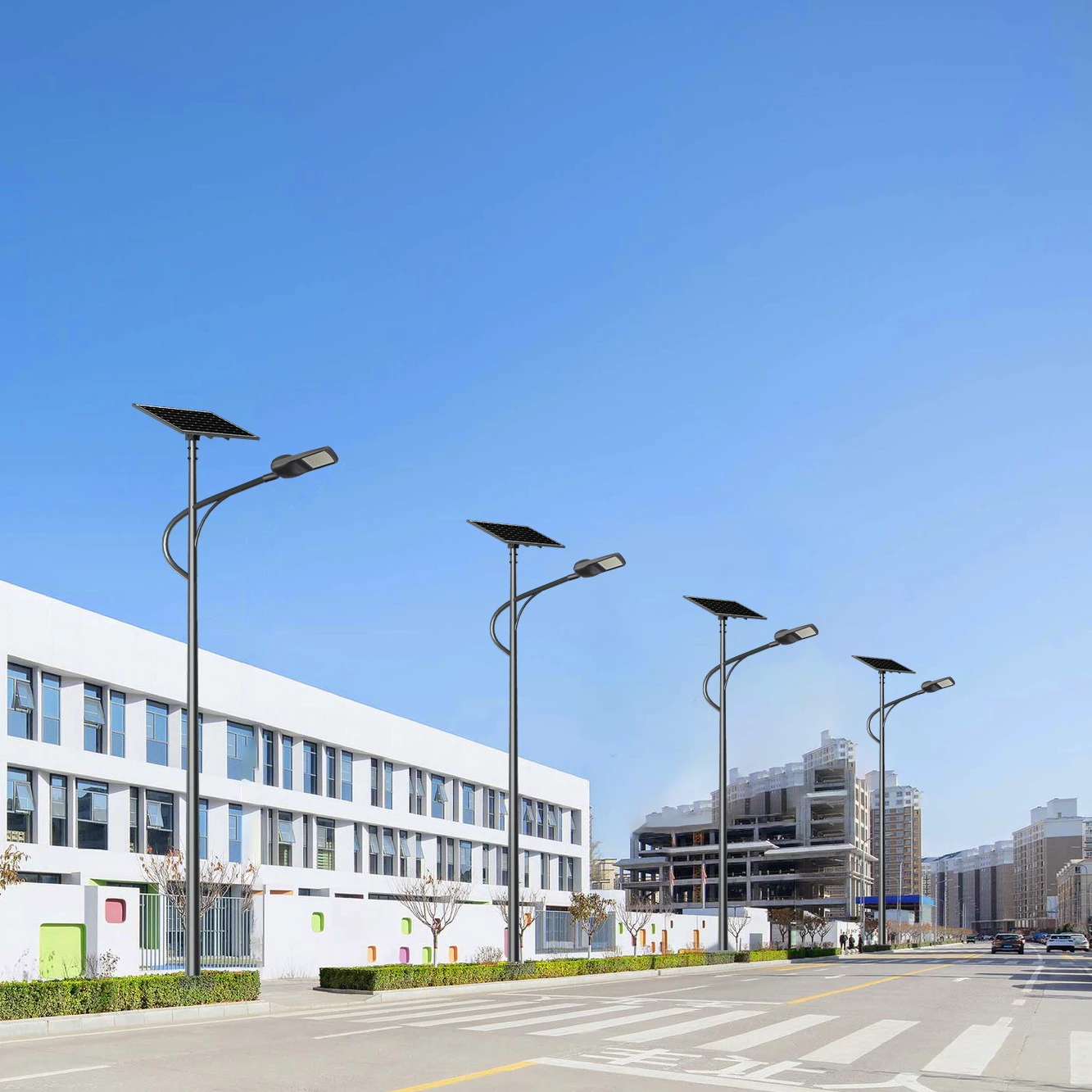

Outdoor Solar Street Light

Structure Of Solar Street Light





Solar Panel

The solar panel is one of the most important parts of solar street lights, as the solar panel will convert solar energy into electricity. There are 2 types of solar panel: mono-crystalline and poly-crystalline. Conversion rate of mono-crystalline solar panel is much higher than poly-crystalline.

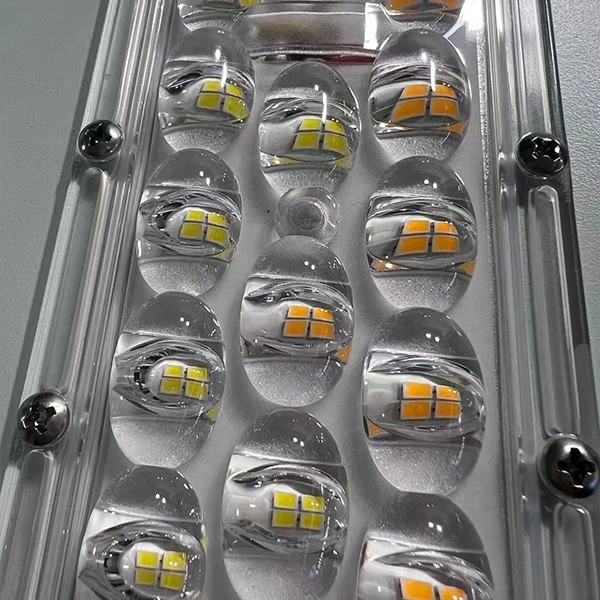

Lighting Fixture

LED is usually used as lighting source of modern solar street light, as the LED will provide much higher Lumens with lower energy consumption. The energy consumption of LED fixture is at least 50% lower than HPS fixture which is widely used as lighting source in Traditional street lights. LEDs lack of warm up time also allows for use of motion detectors for additional efficiency gains.

Rechargeable Battery

Battery will store the electricity from solar panel during the day and provide energy to the fixture during night. The life cycle of the battery is very important to the lifetime of the light and the capacity of the battery will affect the backup days of the lights. There are usually 2 types of batteries: Gel Cell Deep Cycle Battery and Lead Acid Battery and many more.

Controller

Controller is also very important for solar street light. A controller will usually decide to switch on /off charging and lighting. Some modern controllers are programmable so that user can decide the appropriate chance of charging, lighting and dimming.

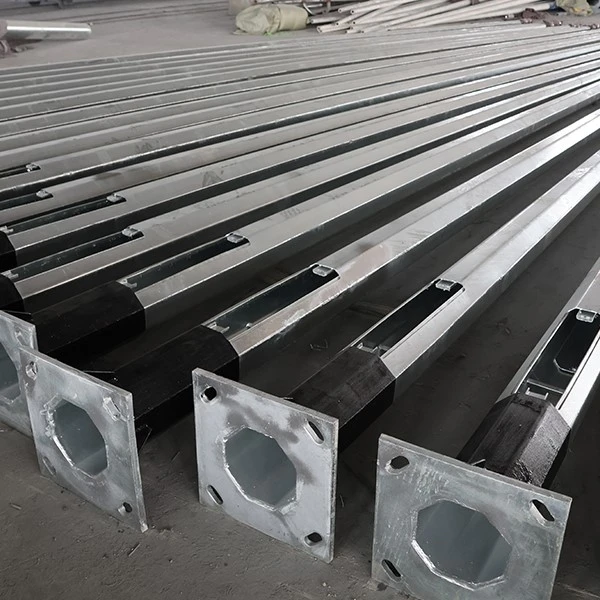

Pole

Strong Poles are necessary to all street lights, especially to solar street lights as there are often components mounted on the top of the pole: fixtures, panels and sometimes batteries. However, in some newer designs, the PV panels and all electronics are integrated in the pole itself. Wind resistance is also a factor.



Precautions For Maintenance Of Solar Street Lights





Regularly check LED light sources
We need to periodically inspect the lamp caps of LED street lights to see if there is any damage to the lamp caps or if there are any problems with the lamp beads. Some LED street lights often do not light up or the light is relatively dim. On the one hand, it is because the brightness of the lamp head is not enough, and on the other hand, it is because a certain row of lamp beads is damaged; The LED lamp beads are connected in series one by one, and multiple strings of lamp beads are connected in parallel. If one lamp bead is broken, then the other string of lamp beads cannot be used; If a whole string of lamp beads is broken, then all the lamp beads in this lamp holder cannot be used. So we need to regularly check the lamp beads to see if there is any burning phenomenon, and if the lighting angle of the lamp is offset or damaged, in order to adjust it in a timely manner.



Regular inspection of light poles
The pole of LED street lights is also a very important part, and it is necessary to regularly check whether the lamp body is severely damaged, overturned, or has leakage. No matter what kind of situation occurs, we should deal with it as soon as possible, especially the leakage phenomenon. We should deal with it as soon as possible to avoid electric shock accidents.
1. Use a clean chicken feather duster to gently remove the dust during regular cleaning, and be very careful.
2. If it is a non-metallic sun lamp, it can be wiped clean with a damp cloth, taking care not to touch the power cord.
3. If it is a metal lamp decoration, wipe it with a dry cloth and do not touch it with water.
Pay attention to the aesthetics of the solar street lights pole after installation. Starting from the foundation construction, the straightness of the light positions should be controlled based on the main line, and the linear changes should be reasonably adjusted according to the road design. The light poles should be straight, and the processing welds and maintenance openings should avoid the main direction, and the entire line should be consistent.



Additional Information



Shipping

We offer various shipping methods, including sea freight, air freight, and express delivery, depending on the order size and destination.

Terms Of Payment

We usually accept T/T, L/C, Paypal, Credit card, etc. If you prefer other payments terms, please feel free to discuss with us.



Certificate



productcate-1-1



FAQ

Q: Do you accept sample orders for solar products?

A: Yes, we encourage sample orders for quality verification. Mixed samples from different product lines are also acceptable.

Q: What is your delivery timeline?

A: Delivery will be completed within 10-15 working days after confirming payment receipt.

Q: Can I customize with high-lumen LEDs or specific drivers?

A: Absolutely. We offer premium options including CREE/Philips 3030/5050 chips, and drivers from Moso, Meanwell, Philips, and Inventronics.

Q: What warranty do you provide?

A: All products come with comprehensive 3-5 year warranties.

Q: How long does solar street light last?

A: The lifespan of a solar street light can vary depending on various factors, including the quality of components, maintenance practices, and environmental conditions. On average, a well-designed and properly maintained solar street light can have a lifespan of 10 to 20 years.

We're professional solar street light suppliers in China, specialized in providing high quality customized products. We warmly welcome wholesale discount solar street light for sale here and get pricelist from our factory. For price consultation, contact us.
