Product Parameters
| Warranty(Year):10-Year | Lighting solutions service:auto CAD layout |
| Luminous Efficacy(Im/w):150 | Material:Q235B |
| Place of Origin:Jiangsu, China | Brand Name:PANAILO |
| Material:Steel, Hot roll galvanizing | Type:Polygonal, Round or octangon |
| Application:Square,Highway;airport;road | Name:Hot Dip Galvanized 31M High Mast Mono Pole |
| Surface treatment:Hot dip galvanized | Height:31M |
| Thickness: 4 mm (negative tolerance) | Powder coated:White;blue;silver;grey |
| Wind speed:160 Km/h | Quality Control:ISO9001:2000 |
| Height | 31m |
| Suit for | Airport , seaport, plaza, stadium , square, highway, street way etc |
| Shape | Conoid , Multi-pyramidal,Columniform, polygonal or conical |
| Material | Usually Q345B/A572, Q235B/A36, As well as Hot rolled coil from Q460 , ASTM573 GR65, GR50 , SS400, SS490, to ST52- |
| Torlance of the dimenstion | +- 2% |
| Electroshock resistant protective grade | Grade one |
| The casing anti-corrosion performance | Class two |
| Working atmosphere of lighting fixture | -35 °C~+45 °C |
| Surface treatment | Hot dip galvanized Following ASTM A 123, color polyester power or any other standard by client required. |
| Joint of Poles | Insert mode, innerflange mode, face to face joint mode |
| Design of pole | Against earthquake of 8 grade |
| Minimum yield strength | 235 mpa |
| Minimum ultimate tensile strength | 490 mpa |
| Max ultimate tensile strength | 620 mpa |
| Standard | ISO 9001 |
| Length of per section | Within 12m once forming without slip joint |
| Welding | We has past flaw testing.Internal and external double welding makes the welding beautiful in shape |
| Welding Standard :AWS ( American Welding Society ) D 1.1 | |
| Thickness | 1 mm to 30 mm |
| Production Process | Rew material test → Cuttingj →Molding or bending →Welidng (longitudinal )→Dimension verify →Flange welding →Hole drilling →Calibration → Deburr→Galvanization or powder coating , painting →Recalibration →Thread →Packages |
| Packages | Our poles as normal cover by Mat or straw bale at the top and bottom ,anyway also can following by client required , each 40HC or OT can loading how many pcs will calculation base on the client actually specification and data. |
| Style | Size and styles are veriable as per customer request |

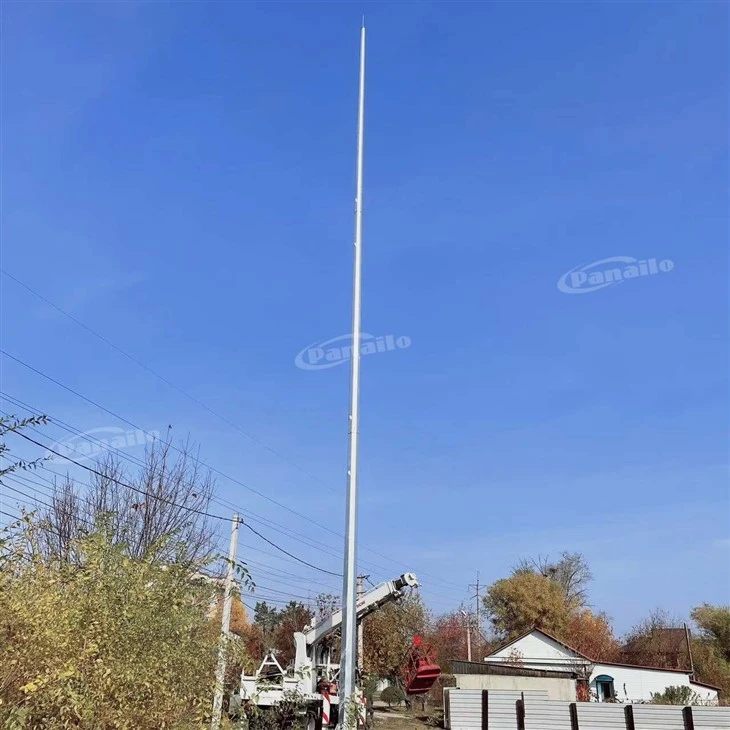

Telecom pole with ladder
Our heavy-duty communication pole with integrated ladder is engineered for reliability in global telecom infrastructure. Crafted from high-grade galvanized steel, it boasts exceptional corrosion resistance, enduring extreme weather-from scorching heat to heavy rains.
Material Advantage
Made of high-quality galvanized steel, featuring high strength and good toughness. It can withstand complex environmental pressures and extend the product's service life..
Benefits of Ladder
Integrated ladder design facilitates safe and quick installation, inspection, and maintenance work for staff, reducing operation time and difficulty.
Corrosion Resistance:
Undergoes professional galvanizing treatment, effectively resisting corrosion from rain, moisture, acids, and alkalis. Suitable for use in various climatic regions.
PRODUCT OVERVIEWS
OEM&ODM
● Easy for installion
● Concise design lighting pole
● High cost performance lighting pole
● Material :Q235,Q355 (Other Material is Available on Request)
● Hot Dip Galvanized (≥86um)
● Any Color Polyester Powder Coated (≥100 um)
● Taper Conical , Octagonal, Polygon Section
● With demounted bracket design,easy loaded,install,and maintenance
● Theftproof slide lock
● Category: Garden lighting,Street lighting pole, light mast,street light mast
Product Details
MEASUREMENT PARAMETERS
Transportation
Packaging Detailsby：Our poles as normal are covered by Mat or straw bale at the top and bottom and woods between the poles can avoid the damage of the galvanization on the surface of steel poles, anyway also we canfollow clients required , The loading capacity of 40HC or OT will be calculated basing on the clients' actual specification and data.
Container loading view
Certificate
FAQ
Q1: Do you accept OEM/ODM?
A: Yes, we 're factory with standard production lines to fulfill different requirements from our clients.
Q2: Can I have a sample order for lighting pole?
A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.
Q3: When you will make the delivery?
A: 10-15 days after receiving customers payment.
Q4: How can I get the price of needed pole?
A: 1.Please give the exactly dimensions such as height, thickness, material, top and bottom dia. We can give you a similar price according to your specification.
2.You can give a drawing.We can give you the price according to your drawing.
Q5: Do you offer guarantee for the products?
A: Yes, we have different warranty periods for different product. For example we usually offer 5 years warranty for solar street light, while, 5 years for LED street light, up to 10 years warranty for lighting poles.
