Product Parameters
| Warranty(Year):10-Year | Lighting solutions service:auto CAD layout |
| Luminous Efficacy(Im/w):150 | Material:Q235B |
| Place of Origin:Jiangsu, China | Brand Name:PANAILO |
| Material:Steel, Hot roll galvanizing | Type:Polygonal, Round or octangon |
| Application:Square,Highway;airport;road | Name:Hot Dip Galvanized 31M High Mast Mono Pole |
| Surface treatment:Hot dip galvanized | Height:31M |
| Thickness: 4 mm (negative tolerance) | Powder coated:White;blue;silver;grey |
| Wind speed:160 Km/h | Quality Control:ISO9001:2000 |
| Height | 31m |
| Suit for | Airport , seaport, plaza, stadium , square, highway, street way etc |
| Shape | Conoid , Multi-pyramidal,Columniform, polygonal or conical |
| Material | Usually Q345B/A572, Q235B/A36, As well as Hot rolled coil from Q460 , ASTM573 GR65, GR50 , SS400, SS490, to ST52- |
| Torlance of the dimenstion | +- 2% |
| Electroshock resistant protective grade | Grade one |
| The casing anti-corrosion performance | Class two |
| Working atmosphere of lighting fixture | -35 °C~+45 °C |
| Surface treatment | Hot dip galvanized Following ASTM A 123, color polyester power or any other standard by client required. |
| Joint of Poles | Insert mode, innerflange mode, face to face joint mode |
| Design of pole | Against earthquake of 8 grade |
| Minimum yield strength | 235 mpa |
| Minimum ultimate tensile strength | 490 mpa |
| Max ultimate tensile strength | 620 mpa |
| Standard | ISO 9001 |
| Length of per section | Within 12m once forming without slip joint |
| Welding | We has past flaw testing.Internal and external double welding makes the welding beautiful in shape |
| Welding Standard :AWS ( American Welding Society ) D 1.1 | |
| Thickness | 1 mm to 30 mm |
| Production Process | Rew material test → Cuttingj →Molding or bending →Welidng (longitudinal )→Dimension verify →Flange welding →Hole drilling →Calibration → Deburr→Galvanization or powder coating , painting →Recalibration →Thread →Packages |
| Packages | Our poles as normal cover by Mat or straw bale at the top and bottom ,anyway also can following by client required , each 40HC or OT can loading how many pcs will calculation base on the client actually specification and data. |
| Style | Size and styles are veriable as per customer request |

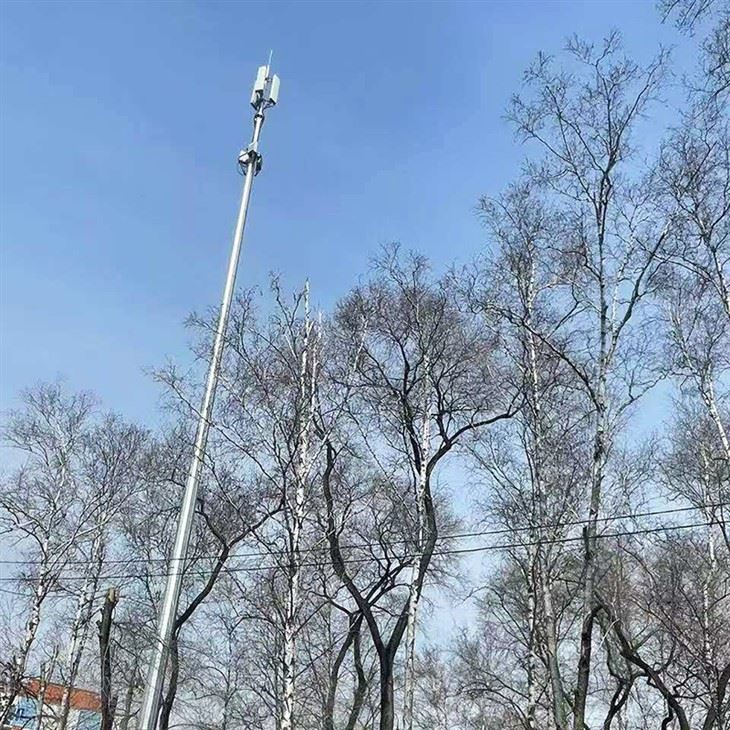

31m Telecom Pole
01
The PST-Telecom Pole-31m, a flagship product within our esteemed Telecom Pole series. Standing tall at 31m, this pole is engineered for superior performance in a variety of settings, including airports, seaports, plazas, stadiums, squares, highways, and streetways.
02
Manufactured from high-quality Q235B steel and hot-dip galvanized for durability, the PST-Telecom Pole-31m offers robust corrosion resistance. Its thickness of 4mm (with negative tolerance) ensures stability even in wind speeds of up to 160 Km/h. Customization options are available to cater to specific project needs, making it a versatile solution for diverse applications.
03
Experience unparalleled strength and reliability with the PST-Telecom Pole-31m. Contact us today to discuss your requirements and explore custom options for your next project.
PRODUCT OVERVIEWS
OEM&ODM
● Easy for installion
● Concise design lighting pole
● High cost performance lighting pole
● Material :SS400, Q235B,A36 (yield strength: 235Pa 24kg/mm² Tensile Strength: 375-460Pa 38-47kg/mm²)
● (Other Material is Available on Request)
● Hot Dip Galvanized (≥86um)
● Any Color Polyester Powder Coated (≥100 um)
● Taper Conical , Octagonal, Polygon Section
● With demounted bracket design,easy loaded,install,and maintenance
● Theftproof slide lock
● Category: Garden lighting,Street lighting pole, light mast,street light mast
