Product Parameters
| Warranty(Year):10-Year | Lighting solutions service:auto CAD layout |
| Luminous Efficacy(Im/w):150 | Material:Q235B |
| Place of Origin:Jiangsu, China | Brand Name:PANAILO |
| Material:Steel, Hot roll galvanizing | Type:Polygonal, Round or octangon |
| Application:Square,Highway;airport;road | Name:Hot Dip Galvanized 18M High Mast Lighting Poles |
| Surface treatment:Hot dip galvanized | Height:18M |
| Thickness: 4 mm (negative tolerance) | Powder coated:White;blue;silver;grey |
| Wind speed:160 Km/h | Quality Control:ISO9001:2000 |
| Material | Usually Q345B/A572, Q235B/A36,As well as Hot rolled coil from Q460 ,ASTM573 GR65, GR50 ,SS400, SS490, to ST52- |
| Torlance of the dimenstion | +- 2% |
| Electroshock resistant protective grade | Grade one |
| The casing anti-corrosion performance | Class two |
| Working atmosphere of lighting fixture | -35 °C~+45 °C |
| Surface treatment | Hot dip galvanized Following ASTM A 123, color polyester power or any other standard by client required. |
| Joint of Poles | Insert mode,innerflange mode,face to face joint mode |
| Design of pole | Against earthquake of 8 grade |
| Minimum yield strength | 235 mpa |
| Minimum ultimate tensile strength | 490 mpa |
| Max ultimate tensile strength | 620 mpa |
| Standard | ISO 9001 |
| Length of per section | Within 12m once forming without slip joint |
| Welding | We has past flaw testing.Internal and external double welding makes the welding beautiful in shape |
| Welding Standard :AWS ( American Welding Society ) D 1.1 | |
| Thickness | 1 mm to 30 mm |
| Production Process | Rew material test → Cuttingj →Molding or bending →Welidng (longitudinal )→Dimension verify →Flange welding →Hole drilling →Calibration → Deburr→Galvanization or powder coating ,painting →Recalibration →Thread →Packages |
| Packages | Our poles as normal cover by Mat or straw bale at the top and bottom ,anyway also can following by client required , each 40HC or OT can loading how many pcs will calculation base on the client actually specification and data. |
| Style | Size and styles are veriable as per customer request |
18m High Mast Lighting Pole
The PST-High Mast Lighting Pole-18m, a standout product in our High Mast Lighting Pole series tailored for extensive area illumination. Standing at an impressive height of 18m, this lighting pole provides superior reach and brightness, making it ideal for squares, highways, airports, and other broad road networks.
Manufactured using high-strength Q235B steel and hot-dip galvanized for robustness, the pole exhibits exceptional resistance to rust and corrosion. Featuring a thickness of 4mm (with negative tolerance), it effortlessly withstands severe weather conditions, including wind speeds of up to 160 Km/h. The pole supports versatile lighting configurations.Customization options are readily available, allowing the PST-High Mast Lighting Pole-18m to be tailored to your specific project requirements. Our dedication to quality is evident through ISO9001 certification and adherence to stringent manufacturing standards.
Illuminate your space with unmatched brilliance using the PST-High Mast Lighting Pole-18m. Reach out to us today to discuss your lighting needs and explore customization possibilities for your upcoming project.
Real scene of the factory
Project Case

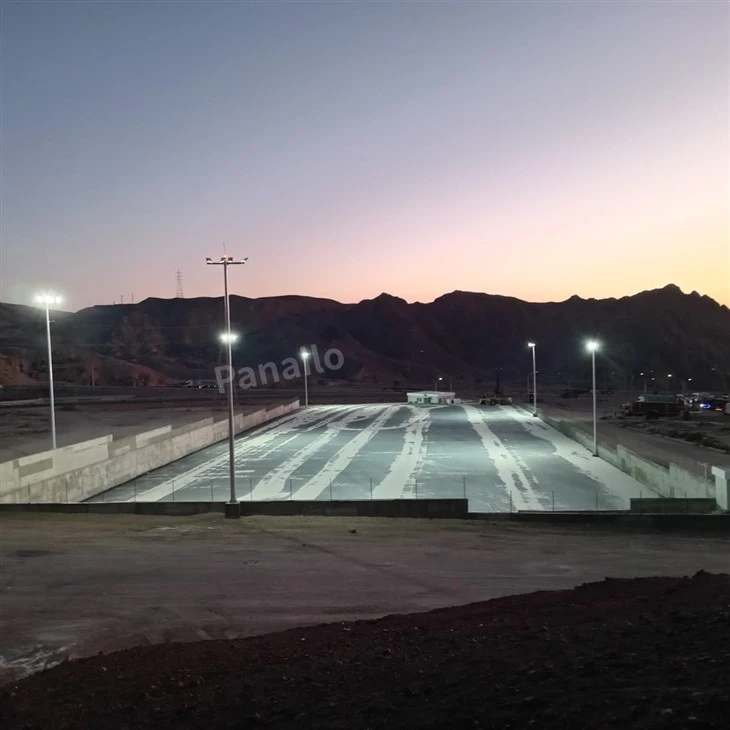

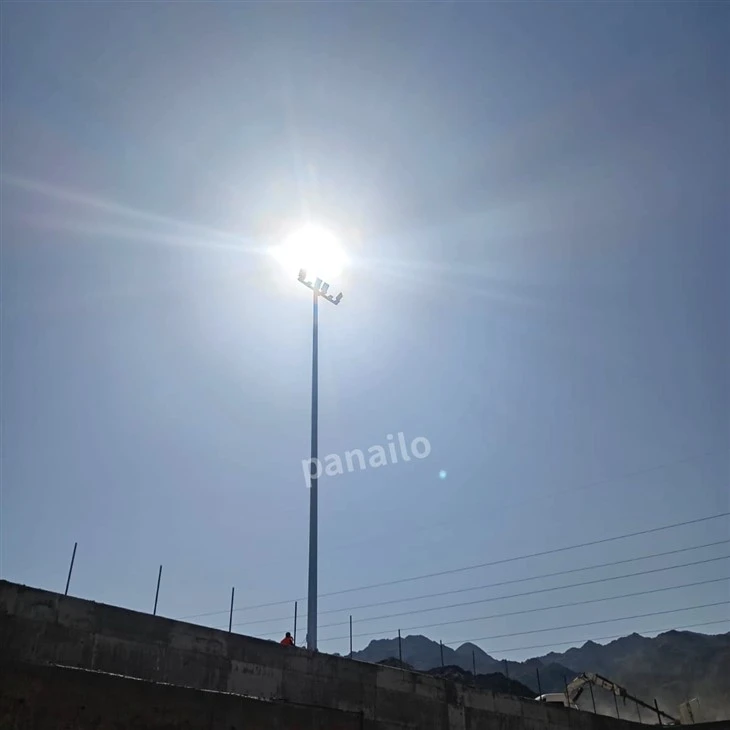

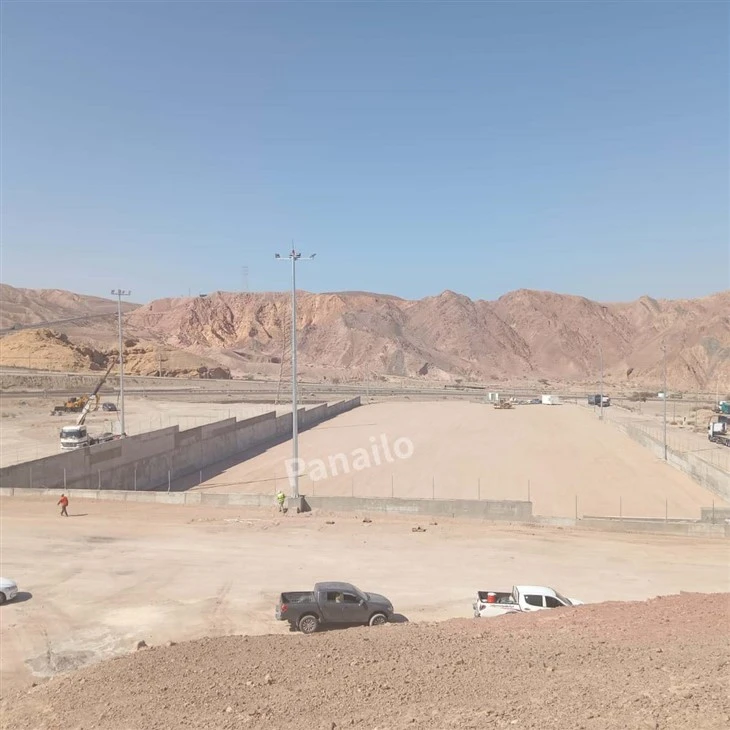

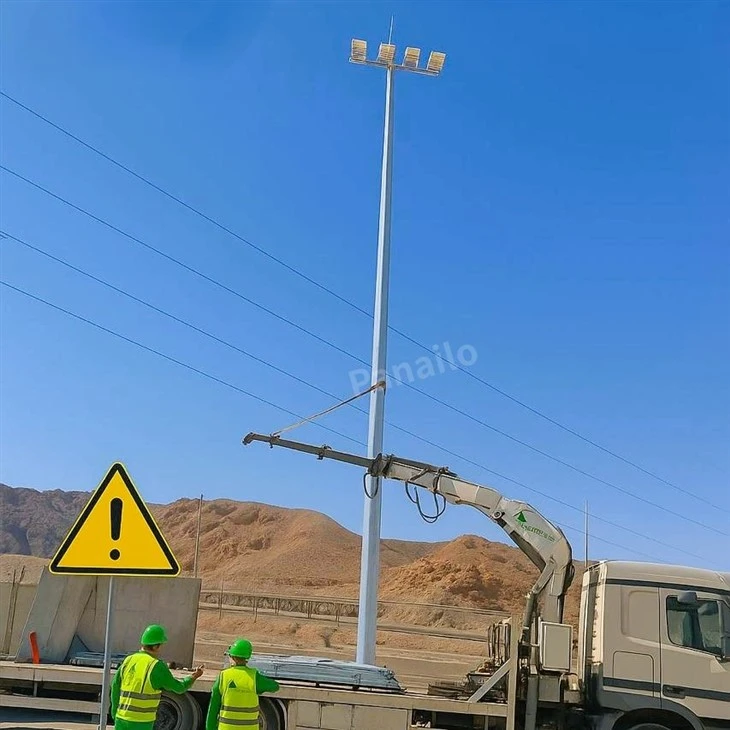

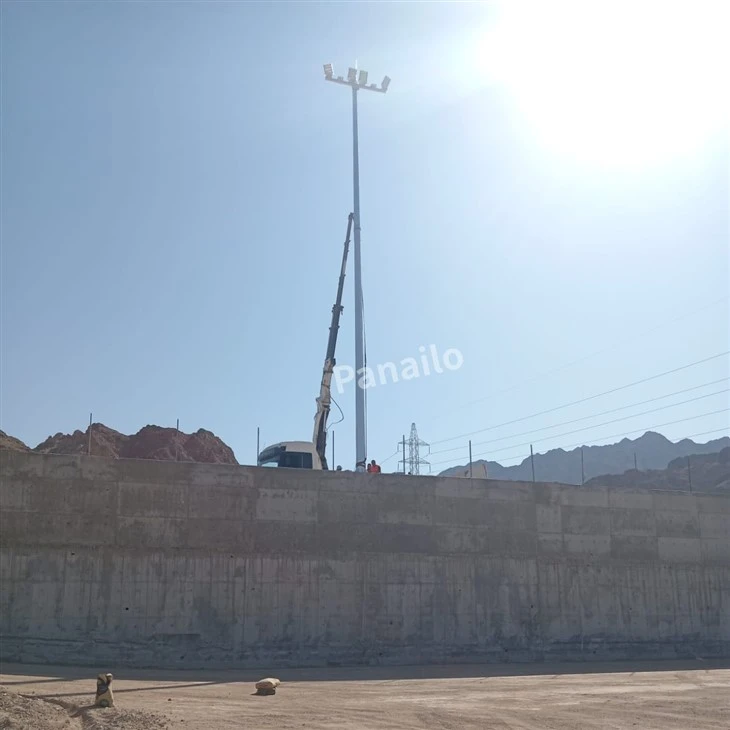

On-site effect
Product testing
Project cases
Certificate
FAQ
