| Warranty(Year):10-Year | Lighting solutions service:auto CAD layout |
| Luminous Efficacy(Im/w):150 | Material:Q235B |
| Place of Origin:Jiangsu, China | Brand Name:PANAILO |
| Material:Steel, Hot roll galvanizing | Type:Polygonal, Round or octangon |
| Application:Square,Highway;airport;road | Name:No Arm Pole hot-dip galvanized 4m street light pole |
| Surface treatment:Hot dip galvanized | Height:4M |
| Thickness: 4 mm (negative tolerance) | Powder coated:White;blue;silver;grey |
| Wind speed:160 Km/h | Quality Control:ISO9001:2000 |
| Height | 4 m |
| Suit for | Airport , seaport, plaza, stadium , square, highway,street way etc |
| Shape | Conoid ,Multi-pyramidal, Columniform, polygonal or conical |
| Material | Usually Q345B/A572, Q235B/A36, As well as Hot rolled coil from Q460 , ASTM573 GR65, GR50 , SS400, SS490, to ST52- |
| Lamp power | 80W-240W LED |
| 220V (+-10%) /50Hz | |
| Torlance of the dimenstion | +- 2% |
| Electroshock resistant protective grade | Grade one |
| The casing anti-corrosion performance | Class two |
| Working atmosphere of lighting fixture | -35 °C~+45 °C |
| Surface treatment | Hot dip galvanized Following ASTM A 123, color polyester power or any other standard by client required. |
| Joint of Poles | Insert mode, innerflange mode, face to face joint mode |
| Design of pole | Against earthquake of 8 grade |
| Wind Speed | 160 Km/Hour |
| Minimum yield strength | 235 mpa |
| Minimum ultimate tensile strength | 490 mpa |
| Max ultimate tensile strength | 620 mpa |
| Standard | ISO 9001 |
| Length of per section | Within 12m once forming without slip joint |
| Welding | We has past flaw testing.Internal and external double welding makes the welding beautiful in shape |
| Welding Standard :AWS ( American Welding Society ) D 1.1 | |
| Thickness | 1 mm to 30 mm |
| Production Process | Rew material test → Cuttingj →Molding or bending →Welidng (longitudinal )→Dimension verify →Flange welding →Hole drilling →Calibration → Deburr→Galvanization or powder coating , painting →Recalibration →Thread →Packages |
| Packages | Our poles as normal cover by Mat or straw bale at the top and bottom , anyway also can following by client required , each 40HC or OT can loading how many pcs will calculation base on the client actually specification and data. |
| Style | Size and styles are veriable as per customer request |

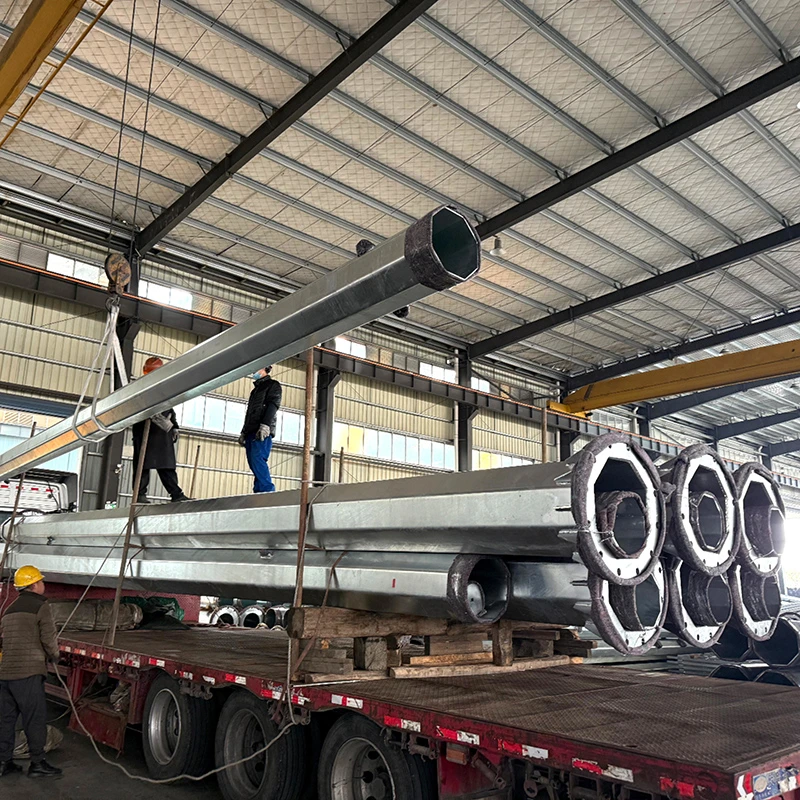

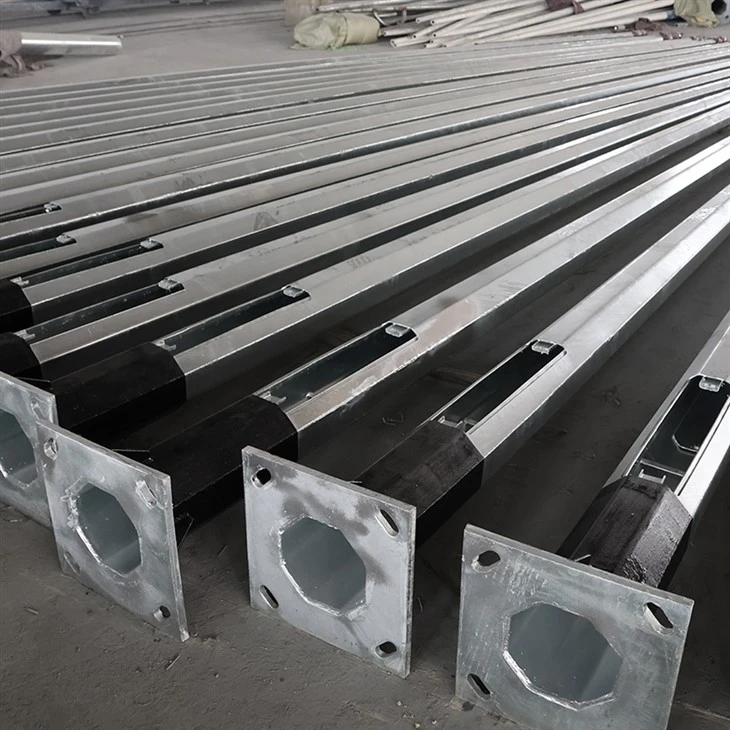

4m No Arm Street Light Pole
Core Design & Materials
Constructed with Q235B structural steel for exceptional durability.1
Features hot-dip galvanized coating to maximize corrosion resistance under harsh conditions.1
Offered in polygonal, round, or octagonal profiles for seamless integration into varied landscapes.
Performance & Adaptability
Withstands wind loads up to 160 km/h due to reinforced 4mm thickness with precision tolerance controls.
Ideal for critical installations across airports, seaports, stadiums, and highway networks.
Customizable with powder-coated finishes including white, blue, silver, and grey for aesthetic alignment.
Quality Assurance & Operations
Manufacturing adheres to ISO9001:2000 protocols for end-to-end reliability.1
Temperature resilience spans from -35°C to +45°C, ensuring consistent functionality in extreme climates.
Select this 4m No Arm Street Light Pole for a versatile, high-performance lighting solution tailored to modern infrastructure demands.
PRODUCT OVERVIEWS
| High quality mains light pole |
|
||
| Category | Description | ||
| Double-arm | 1 | Material: Q235B, main rod thickness 4mm, upper mouth 76mm, lower mouth 124mm,light pole height 4m | |
| 2 | Hot dip galvanizing, brush asphalt 0.5 m above flange and bottom | ||
| 3 | Packing: conventional packing (Use old blanket to pack poles at both ends) | ||
| 4 | All welds are mechanically cleaned to prevent slag | ||
| 5 | Removed burrs or sharp edges | ||
Real scene of the factory
Product testing
Project cases
Certificate
