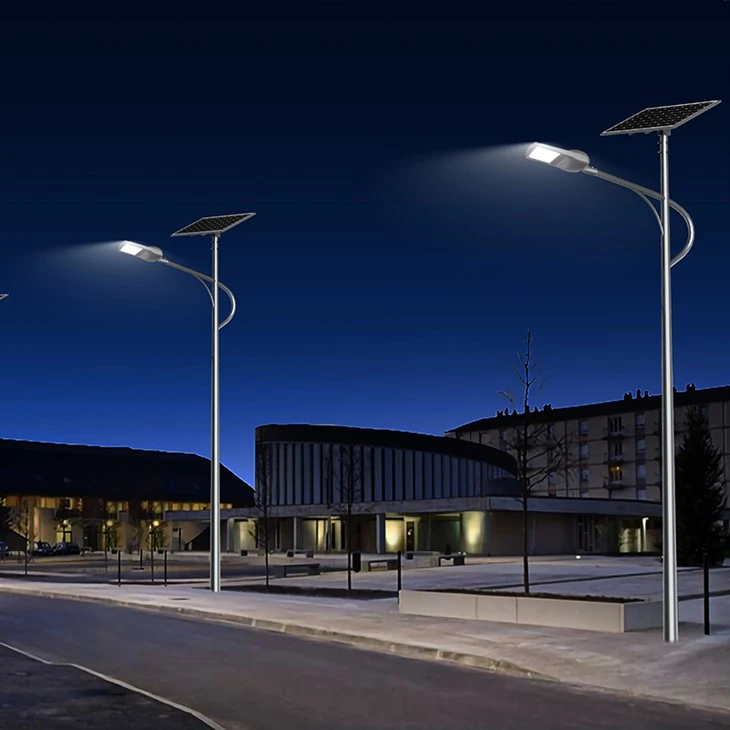

TWINSOL Series · Street Lamp
A refined street-lighting platform combining adjustable installation, efficient optical control, robust thermal design and flexible AC, DC and solar-ready configurations.
luminaire power range
Rated luminous efficiency range
Protection rating shown for DC configuration
Customizable pole height range
TWINSOL uses a streamlined housing and road-oriented optical design to place light where it is needed while keeping the luminaire visually clean and compact.
01
Bat-wing optics
Lens distribution is designed for broad, even roadway coverage.
02
Die-cast aluminum
Corrosion-resistant housing with electrostatic powder coating.
03
Adjustable sleeve
Supports horizontal or vertical installation with angle adjustment.
04
Thermal architecture
Large heat-exchange area helps manage LED junction temperature.
The product architecture combines heat transfer, sealed construction and serviceable internal modules to support stable operation in outdoor environments.
Integrated heat dissipation
Direct physical contact between the light-source area and the aluminum cover helps conduct heat away from the LED modules. The brochure specifies operation up to high ambient temperatures and a 50,000-hour design life for the AC luminaire configuration.
Protected power architecture
Depending on configuration, TWINSOL can integrate a constant-current power supply, lightning protection module, intelligent controller and LiFePO₄ battery system. A single-lamp controller is available as an option.
structure
The exploded assembly separates the light-source stack, tempered glass, reflectors, controller, power components, battery compartment and adjustable sleeve-supporting easier inspection and maintenanc.
The adjustable sleeve supports cross-fit horizontal installation, vertical erection and angle tuning for different road geometries and lighting requirements.
Horizontal or vertical
Use the same luminaire body for side-entry or post-top style mounting.
Adjustable angle
A wide adjustment range for aiming the luminaire after installation.
Tool-conscious access
Rotary screw and buckle mechanisms are designed to simplify cover opening and routine maintenance.
Solar / DC configurations
TWINSOL can be configured with low-voltage LED power, LiFePO₄ battery storage, PWM control and monocrystalline solar panels.
Configuration A
40 / 50 / 60 W solar street light
Light source: 12.8 V
Battery: 12.8 V / 48 Ah
Controller: 15 A PWM
Rated flux: 6,000 lm
Configuration B
Dual 30 W lighting system
Battery: 12.8 V / 24 Ah × 2
Solar: 120 W / 18 V × 2
Controller: 15 A PWM × 2
Rated flux: 9,000 lm
Configuration C
80 W solar street light
Light source: 12.8 V
Battery: 12.8 V / 54 Ah
Controller: 15 A PWM × 2
Rated flux: 12,000 lm
Hot Tags: All in Two Solar Street Light, China All in Two Solar Street Light suppliers, factory, solar street lamps, solar led street light with pole, all in two solar street light, solar street, 100w solar led lights with lithium battery, solar powered streetlights
Product Parameters
| Recommended configuration of solar street lights | |||||
| 6M30W | |||||
| Type | LED light | Solar panel | Battery | Solar Controller | Pole height |
| Split Solar street light(Gel) | 30W | 80W Mono-crystal | Gel-12V65AH | 10A12V | 6M |
| Split Solar street light(Lithium) | 80W Mono-crystal | Lith-12.8V30AH | |||
| All in two solar street light(Lithium) | 70W Mono-crystal | Lith-12.8V30AH | |||
| 8M60W | |||||
| Type | LED light | Solar panel | Battery | Solar Controller | Pole height |
| Split Solar street light(Gel) | 60W | 150W Mono-crystal | Gel- 12V120AH | 10A24V | 8M |
| Split Solar street light(Lithium) | 150W Mono-crystal | Lith- 12.8V36AH | |||
| All in two solar street light(Lithium) | 90W Mono-crystal | Lith-12.8V36AH | |||
| 9M80W | |||||
| Type | LED light | Solar panel | Battery | Solar Controller | Pole height |
| Split Solar street light(Gel) | 80W | 2PCS*100W Mono-crystal | Gel-2PCS*70AH 12V | 15A24V | 9M |
| Split Solar street light(Lithium) | 2PCS*100W Mono-crystal | Lith - 25.6V48AH | |||
| All in two solar street light(Lithium) | 130W Mono-crystal | Lith-25.6V36AH | |||
| 10M100W | |||||
| Type | LED light | Solar panel | Battery | Solar Controller | Pole height |
| Split Solar street light(Gel) | 100W | 2PCS*120W Mono-crystal | Gel- 2PCS*100AH 12V | 20A24V | 10M |
| Split Solar street light(Lithium) | 2PCS*120W Mono-crystal | Lith- 24V84AH | |||
| All in two solar street light(Lithium) | 140W Mono-crystal | Lith- 25.6V36AH | |||
| Recommended configuration of solar street lights | ||||||
| 6M30W | ||||||
| Type | LED light | Solar panel | Battery | Solar Controller | Pole height | Light source |
| Split Solar street light(Gel) | 30W | 120W/18V Mono-crystal | Gel-12V100AH | 15A12V | 6M~7M | 30~40W |
| Split Solar street light(Lithium) | 120W Mono-crystal | Lith-12.8V30/36AH | ||||
| All in two solar street light(Lithium) | 70W Mono-crystal | Lith-12.8V30/36AH | ||||
| 7M50W | ||||||
| Type | LED light | Solar panel | Battery | Solar Controller | Pole height | Light source |
| Split Solar street light(Gel) | 50W | 150W/18V Mono-crystal | Gel- 12V120AH | 15A12V | 6M~8M | 40~60W |
| Split Solar street light(Lithium) | 150W Mono-crystal | Lith- 12.8V36/42/48AH | ||||
| All in two solar street light(Lithium) | 90W Mono-crystal | Lith- 12.8V36/42/48AH | ||||
| 8M60W | ||||||
| Type | LED light | Solar panel | Battery | Solar Controller | Pole height | Light source |
| Split Solar street light(Gel) | 60W | 2PCS*100W/36V Mono-crystal | Gel-2PCS*100AH 12V | 15A24V | 7M~9M | 50~80W |
| Split Solar street light(Lithium) | 2PCS*100W Mono-crystal | Lith - 25.6V24/30/36/42/48AH | 15A12V,15A24V | |||
| All in two solar street light(Lithium) | 130W Mono-crystal | Lith - 25.6V24/30/36/42/48AH | 15A12V,15A24V | |||
| 9M80W | ||||||
| Type | LED light | Solar panel | Battery | Solar Controller | Pole height | Light source |
| Split Solar street light(Gel) | 80W | 2PCS*120W/36V Mono-crystal | Gel- 2PCS*150AH 12V | 15A24V | 8M~12M | 70~120W |
| Split Solar street light(Lithium) | 2PCS*120W/36V Mono-crystal | Lith - 25.6V24/30/36/42/48AH | 15A12V,15A24V | |||
| All in two solar street light(Lithium) | 140W Mono-crystal | Lith - 25.6V24/30/36/42/48AH | 15A12V,15A24V | |||
